Rubber Rollers

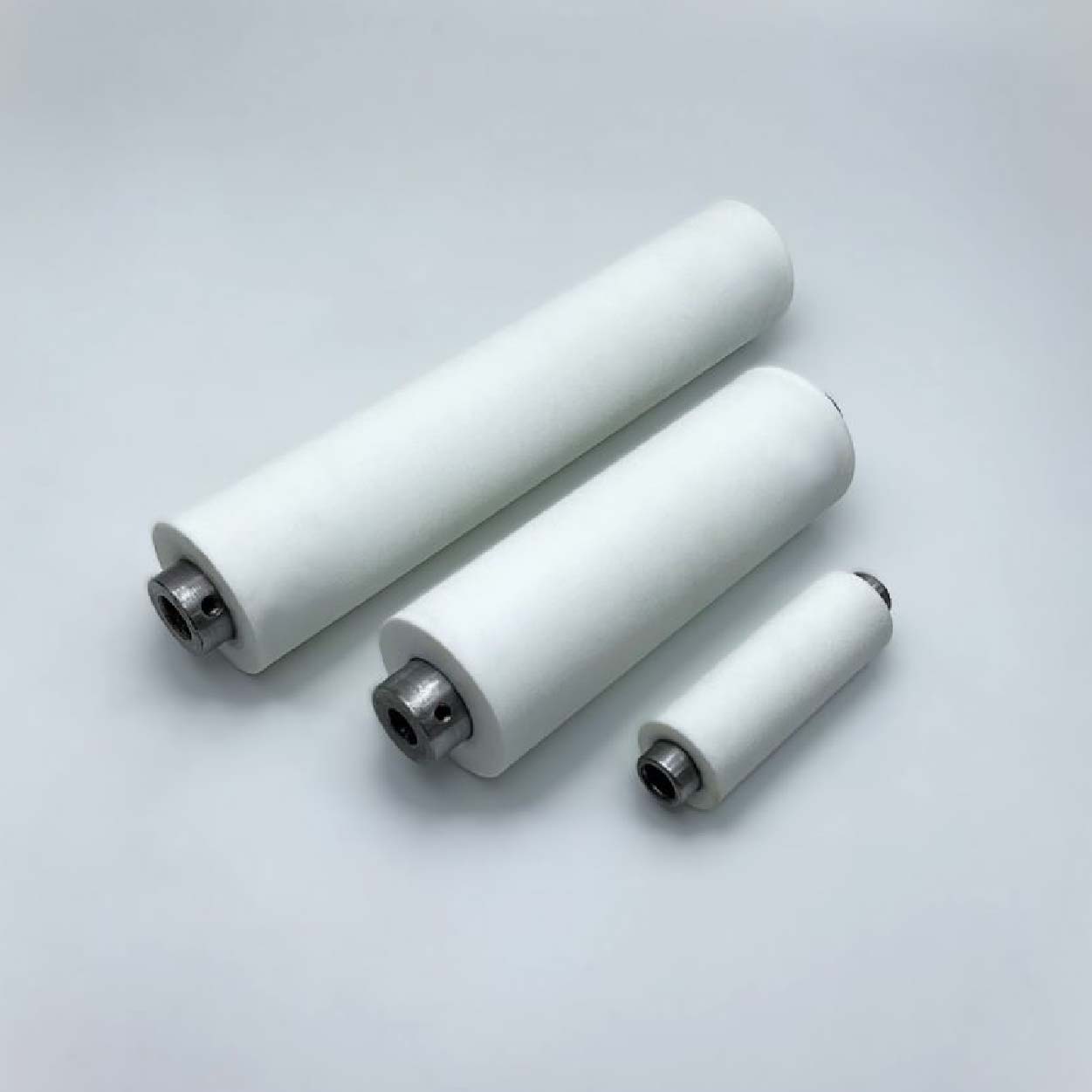

Rubber Coated Rollers
Rubber coating for rollers is a flexible material used to cover rollers. Its purpose is to press and roll between two rollers and create friction to prevent materials from moving off course. With expertise in both manufacturing and repairing rollers for maximum utility, we can either produce new rollers or reduce costs through various repair methods such as shaft repairs, rust removal, or re-coating with rubber. We also control rubber hardness ranging from 50-85 Shore A.

Category:

In addition to manufacturing conveyor rollers and other general types, we produce rubber-coated rollers of various sizes for different industries, including Packaging, Textile, Food and Beverage, Pharmaceutical, and more, based on the specific requirements of each type of rubber.

Roller Coating Chart:

Type of Rubber CoatingHardness (Shore A)Application
Natural Rubber (NR)40-90Conveyor work
Nitrile Rubber (NBR)40-90Applications exposed to lubricants or oils
Ethylene Propylene Diene Rubber (EPDM)40-85Chemical/acid-base exposure; Weather resistance (some types)
Neoprene Rubber (CR)60-80 Chemical/acid-base exposure (some types)
Hypalon Rubber (CSM)60-80Chemical/acid-base exposure (some types)
Silicone Rubber20-90Food/Beverage/Pharmaceutical industries; High-temperature resistance
Polyurethane (PU)40-97Exposure to oils/chemicals/acid-base (some types)

Information Required for Quotation:

  1. Diameter of the steel core M.S. Shell Diameter
  2. Finished Rubber Diameter and Rubber Hardness
  3. Total Length of the Roll with both side Shafts
  4. Rubber Thickness
  5. Application of the Roller: Chemical Resistance/Abrasion Resistance/Temperature Resistance
  6. Rubber Hardness

If specific information is not available, please consult with us.
